Maximizing efficiency.
Minimizing footprint.
Ready to save money, optimize space, and reduce carbon emissions?
About us
The Answer to the $20 Billion Empty Container Repositioning Problem
The GenFlat Container is engineered to be a substitute for the standard Marine Container. Built from mild steel and Corten, GenFlat exceeds current strength and rigidity standards.
Once four GenFlat containers are stacked and locked together, they can be lifted as a single unit, ready for multi-modal transport.
Process

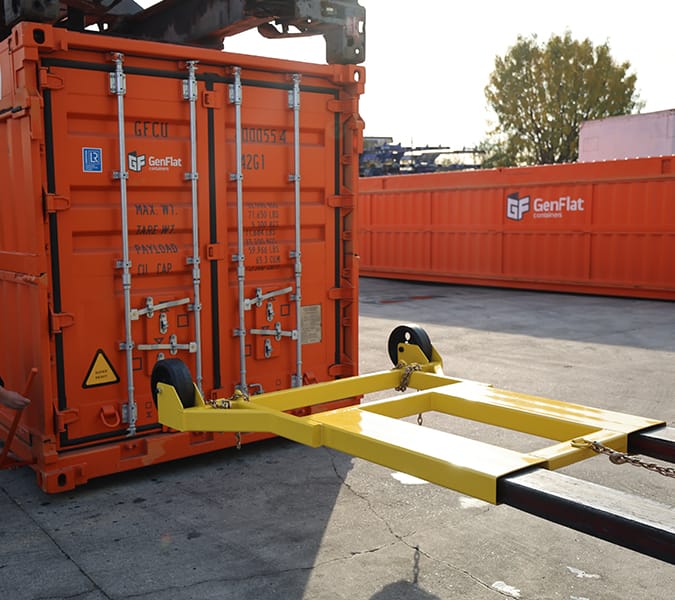

Expand
The actuator attaches in 6 locking positions utilizing the traditional industry standard “Twist Locking” mechanism

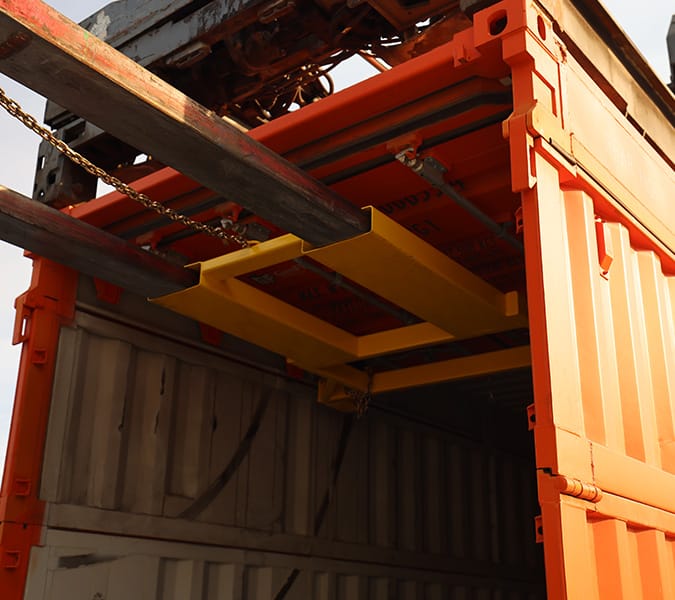

Unlock
Collapse
The Actuator collapses the GenFlat Container automatically in 80 seconds
Stack
Locking technology stacks 4 empty GenFlats into the exact space of a Marine Container
By the Numbers
*average cost savings from US Midwest to Asia
Cost Savings per FEU Move
Cost Savings per FEU Annual
Cost Savings per FEU Usual Life
GenFlat Value Propositions
Safe and Secure
Multi-Modal Transport
Your Existing Operations Don’t Change
GenFlat Containers lock together when collapsed – 4 collapsed container units take up the space of 1 Standard Marine Container. The GenFlat container makes for secure “multi-modal” transport by train, ocean vessel or over the road truck, maintaining the same handling operations currently in place.
Cost Savings
Reduces repositioning costs by up to 75%.
Space Creating
Reduces overall congestion at ports, terminals, depots and related storage facilities and removes the burden of finding solutions to capacity constraints.
Carbon Emission Reduction
Fewer transportation moves = reduced fuel consumption, reduced traffic and reduced emissions
The Actuator is key to collapsing and expanding the GenFlat collapsible container. The Actuator fits all container spreader equipment in the 20’ position. The device lifts the GenFlat container in 6 lifting positions, vs the 4 corner positions standardized for lifting ocean containers – and uses a double-action armature on each end to push in or lower down the end panels when collapsing/expanding.
The device is hydraulically powered with electrical controls, enabling easy connection to the material handling device (Top Handler, Transtainer, Gantry Crane devices). Each of the 6 locking positions utilize the traditional industry standard “Twist Locking” mechanisms. The Actuator is lightweight – under 2 metric tons – and although not designed to lift containers further than the collapsing / erecting design, it does have the mandated safe working load testing and certification required for all lifting equipment worldwide.
Why GenFlat
“FULLY LOADED” – NO DIFFERENCE
- Same internal dimensions
- Same capacity and payload
- Same cargo protection
- ISO tested and certified + water tight
“EMPTY” – 4X THE UTILIZATION OF SPACE
- At ports, terminals, depots and yards – 5 to 20 stacked containers
- Ships – 15,000 to 60,000 stacked containers
- Trains – 2 to 8 stacked containers
- Trucks – 1 to 4 stacked containers
Technical Specifications
Total Length: 40 ft
Tare Weight: 5,300 kgs
Payload: 27,200 kgs
Internal Length: 12,192 mm
Internal Width: 2,438 mm
Internal Height: 2,591 mm
